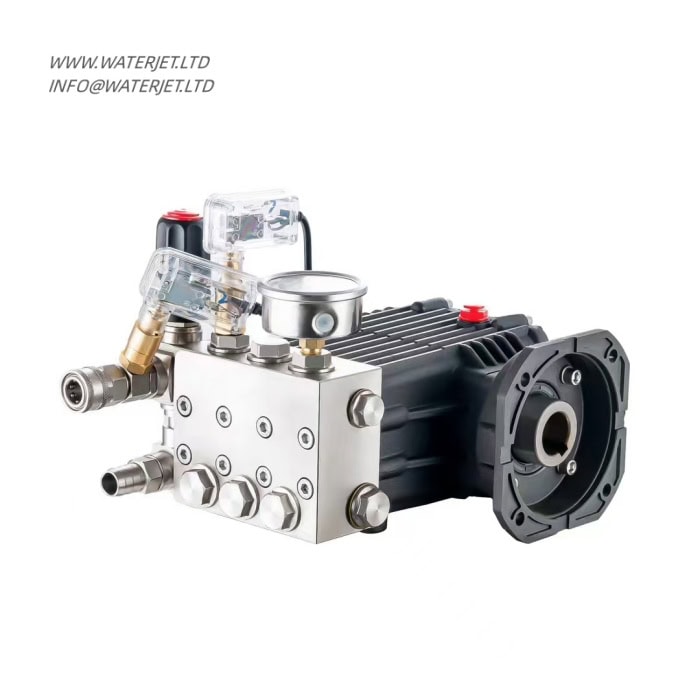

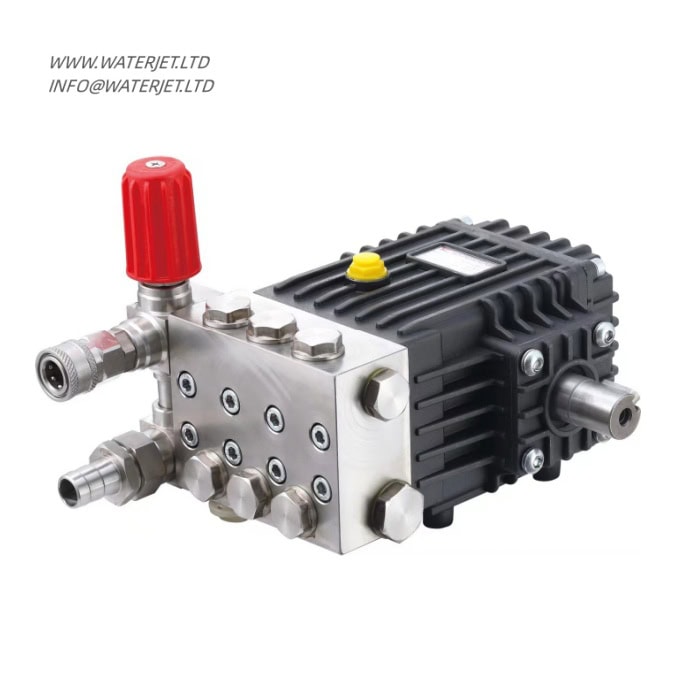

this Stainless Steel Pump is made by waterjet.ltd .
The advantages of stainless steel plunger pumps are as follows. Firstly, the stainless steel material has relatively strong corrosion-resistant properties. Especially the pump heads made of 316L stainless steel can be applied in boilers, chemical plants, in environments with strong alkalinity, strong acidity, and even in seawater desalination. Secondly, the stainless steel pump heads have a very high pressure-bearing capacity. Therefore, it is also the preferred material for ultra-high pressure plunger pumps.
Stainless Steel Pump Parameters
| Type | Flow | Pressure | Speed | Power | Φ Plunger | Stroke | |||
| L/min | gpm | Bar | psi | rpm | kw | hp | mm | mm | |
| LTN0310 | 3 | 0.79 | 100 | 1450 | 1450 | 0.75 | 1 | 18 | 3 |
| LTN0410 | 4.5 | 1.19 | 100 | 1450 | 1450 | 1.1 | 1.5 | 18 | 4 |
| LTN0510 | 5.5 | 1.45 | 100 | 1450 | 1450 | 1.1 | 1.5 | 18 | 5 |
| LTN0818 | 7.5 | 1.98 | 180 | 2610 | 1450 | 3 | 4 | 18 | 7 |
| LTN1218 | 11 | 2.91 | 180 | 2610 | 1450 | 4 | 5.5 | 18 | 10 |
| LTN1520 | 15 | 3.96 | 200 | 2900 | 1450 | 8 | 6 | 18 | 14 |
| LTN1525 | 15 | 3.96 | 250 | 3625 | 1450 | 7.5 | 13 | 18 | 14 |
| LTN1910 | 19 | 5.02 | 100 | 1450 | 1450 | 4 | 5.5 | 20 | 14 |
| max pressure | 250BAR |
|---|---|
| water flow | 3-19LPM |
| pump head | brass |
